Dry ice. The focused clean agent.

ELSA — focused dry ice fire suppression Layered artwork: native 1774 by 887 scene, separate original 1039 by 281 Carver Fire logo, and outlined vector headline. Scene resolution at 48 inches wide is approximately 37 pixels per inch; this is not a final large-format print master. Created September 16, 2026 using built-in image_gen edits, then SVG composition with original logo.jpg and vector headline paths. Native scene: 1774 x 887 pixels. Original logo overlay: 1039 x 281 pixels. At 48 inches wide, the scene is 36.96 PPI; no artificial enlargement was performed. This is a reusable layered WEB hero, not a final 4x4 print board. High-resolution scene recreation or suitable detail-enhancement still needed before close-view print production. Headline outlines scale without font dependencies. The exact supplied logo is embedded separately rather than flattened into the scene. Final image edit prompt: Precise-object-edit. Edit this image in place. Preserve ELSA cabinet on left EXACTLY pixel for pixel: geometry, perspective, position, blue color, white ELSA lettering, nozzle, casters, all hardware unchanged. Preserve particle stream and navy space above. CHANGE ONLY fire on far right and floor. Replace unnatural neon linework flames with a photorealistic industrial fire photographed at high shutter speed: large flowing soft-edged translucent orange-yellow flame sheets, bright diffuse bases, darker orange turbulent tips, realistically lit charcoal smoke, natural uneven shapes, no repeated curly lines, no outlined or neon filament flames, no drawn flame texture. Fire remains restricted to rightmost quarter of image and does not obscure spray path. Floor should be dry matte concrete with soft fog and scattered dry ice, remove wet puddle-like mirror reflections. No text or logos added. No poster symbols or circles. 2:1 landscape. Output 3840x1920 or highest native resolution possible; preserve all requested product details.
No water
No foam
No agent residue

Focused on what matters

Protect the asset.
Limit the aftermath.

When cleanup, contamination, and downtime carry a high cost, targeted supplemental protection deserves a closer look.

Lithium-ion battery hazards

Targeted intervention where batteries are built, tested, handled, and stored. Apply concentrated cooling to fire-exposed batteries and surrounding hazards.

Manufacturing · Testing
Recycling · Storage

Flammable liquids

Supplemental suppression for localized spill fires and smaller storage hazards, with focused delivery to the area that needs it.

Localized spills
Small-storage hazards

High-value equipment

Explore early intervention around robotic cells and valuable machinery, with the goal of avoiding suppression-related contamination and downtime.

Robotic production cells
Critical machinery

See the physical performance

ELSA in action.

Watch recorded battery and diesel fire demonstrations. Review the test conditions and technical evaluations to assess relevance to your application.

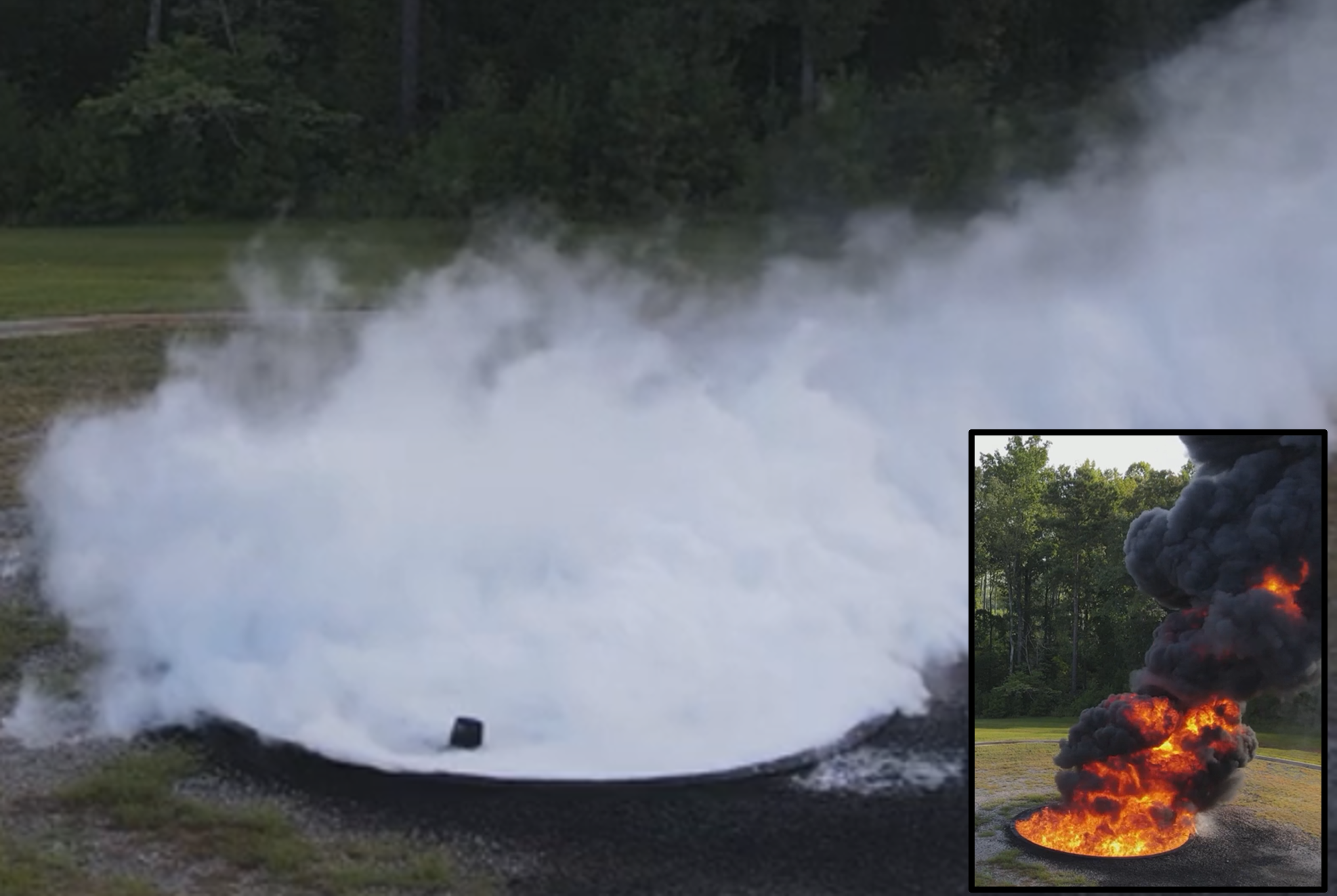

Fuel fire demonstration

500 sq ft diesel fire

A larger-scale demonstration of focused discharge and flame knockdown. Watch the sequence from fire exposure through suppression.

Open the full recording

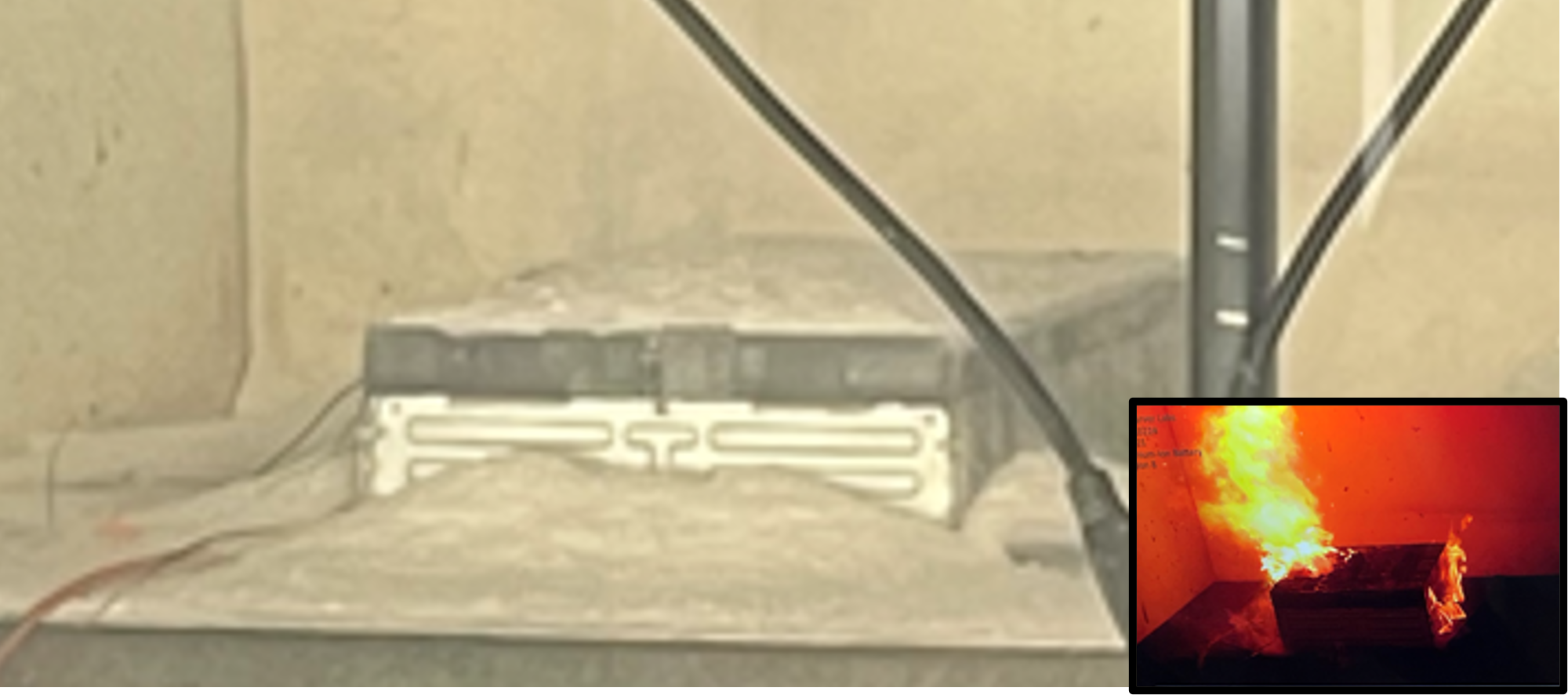

Battery fire demonstration

58 Ah NMC prismatic battery

A close look at ELSA discharging onto a lithium-ion battery fire. The player shows the short demonstration clip.

Watch the full recording

For fire protection professionals

Review the technical evidence.

Independent Technical Opinion & Reports (TO&R) address lithium battery fire mitigation and ignitable-fluid fire suppression.

Lithium battery fire mitigation

Read the engineering evaluation, supporting observations, and scope of the battery fire review.

View battery report PDF · 25CVR001-FP-001

Ignitable-fluid fire suppression

Explore the technical review of ELSA in fuel-fire scenarios and the performance observations it documents.

View fuel report PDF · 26CVR001-FP-001

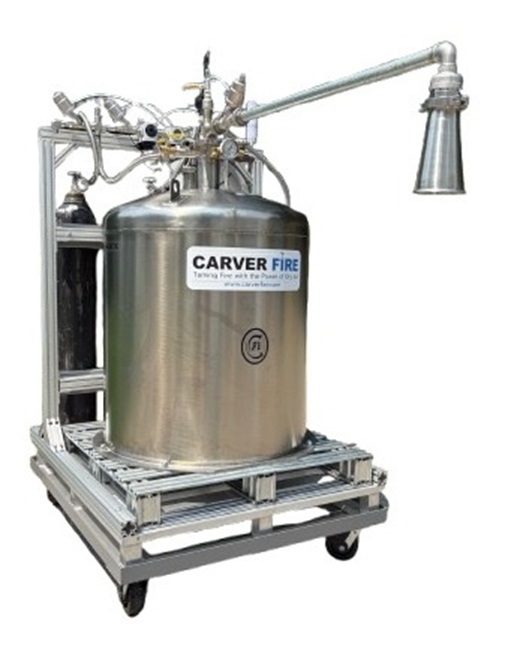

How ELSA works

Concentrated cooling.
Local inerting. Focused delivery.

ELSA combines sand-sized dry ice with liquid nitrogen and directs the cryogenic discharge toward the hazard.

01 / TARGET

Deliver where needed.

A directed discharge concentrates the agent at the hazard, allowing protection to be planned around a defined area or asset.

02 / COOL

Remove heat.

Liquid nitrogen and solid CO₂ absorb heat as they change phase, bringing cryogenic cooling directly to the exposed area.

03 / INERT

Generate gas locally.

CO₂ and nitrogen gas displace oxygen near the discharge. The resulting effect depends on delivery, geometry, and ventilation.

The suppression media dissipate as gas, leaving no agent residue.

From concept to application

A system designed
around the hazard.

Start with the asset, exposure, and response objective. Then evaluate delivery, activation, placement, and service requirements.

Discuss system requirements
Suppression media
Dry ice and liquid nitrogen
Delivery
Fixed nozzle, flexible hose, or application-specific integration
Activation
Manual or automatic, based on the selected configuration
Controls
Industrial touchscreen PLC and active monitoring
Servicing
Review refill, tank-swap, and cryogenic supply arrangements for your site
Installation
Confirm capacity, footprint, utilities, ventilation, and access during application review
How does ELSA fit with existing fire protection?

ELSA is positioned as supplemental protection alongside required systems. The objective is early, targeted intervention that may avoid the need for water or foam discharge. System coordination and acceptance must be evaluated for the installation.

Can ELSA protect robots or energized equipment?

High-value equipment is an application focus. Compatibility must be evaluated for the actual equipment and exposure conditions, including cold, particle impact, condensation, and electrical operating state. The absence of agent residue alone does not establish compatibility.

What information helps assess an application?

Share the hazard, the equipment or materials at risk, the approximate area, existing fire protection, and what damage or downtime you are trying to prevent. Photos or a layout can help us begin a technical discussion.

Evaluate ELSA for your hazard

Have a facility hazard or fire department need in mind?

Review test data, discuss system integration, or explore a demonstration for your specific fire-protection needs.

Contact Us info@carverfire.com

Media & industry perspectives

Carver Fire in the
industry conversation.

Our founder’s published perspective on BESS fire protection, magazine coverage, and in-depth interviews bring ELSA’s approach to a wider industry audience.

Contributed essay

FIRE & SAFETY JOURNAL AMERICAS · JANUARY 2026

An inflection point in BESS fire protection

By Carver Anderson
Founder, Carver Fire

Carver Fire’s founder examines the gap between today’s battery-fire hazards and response options—and the role of earlier cooling and intervention.

Read Carver’s essay
Magazine feature

FIRE & SAFETY JOURNAL AMERICAS · NOV/DEC 2025

Introducing a different approach to fire suppression

A featured interview puts Carver Fire and ELSA in front of the fire-protection community, exploring the thinking behind dry ice fire suppression.

Read the featured interview
Podcast interview

ENERGY RISK ENGINEERING

The conversation behind the technology

Hear Carver Fire’s founder discuss cryogenic cooling, lithium battery fire challenges, and the development of ELSA in a long-form industry conversation.

Watch the founder interview
